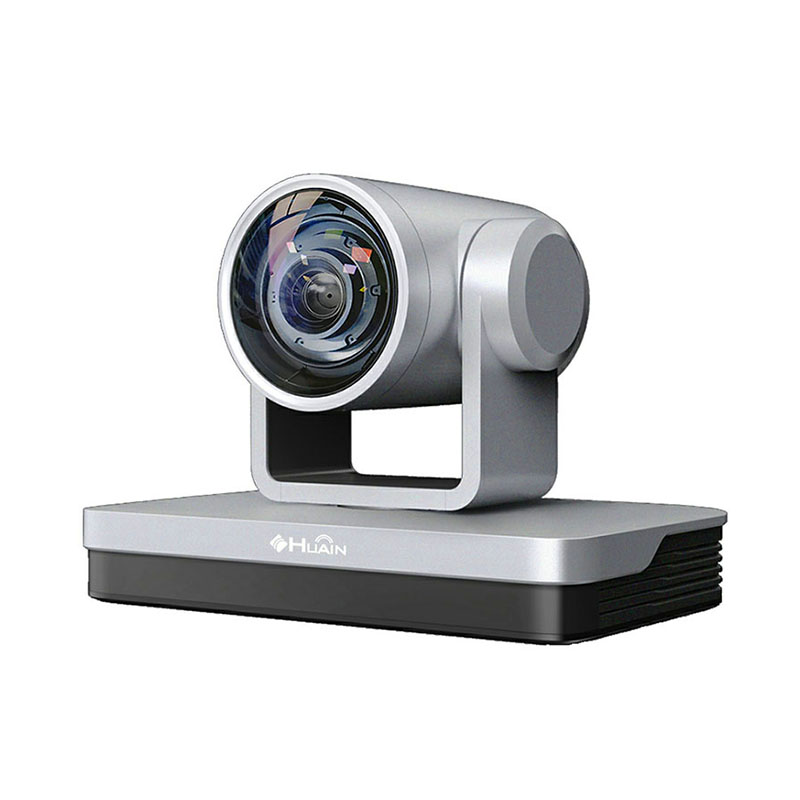

HY-HD20/4KA1
HUAIN
model | 4k20x HD camera series |
image sensor | 1 / 2.5 "high quality CMOS sensor |
Output valid pixels | 8.5 megapixel 16:9 |
video signal | 3840×2160，1080P；1080I；720P |
Lens optical zoom | 20x optical zoom f = 3.85 ~ 43.6mm |
visual angle | 7.56 ° (narrow angle) ~ 80.4 ° (wide angle) |
Aperture coefficient | f＝3.85～43.6mm |
Digital zoom | 10x |
Video interface | HDM I、USB3. 0、USB2. 0、LAN |
Video compression format | H.265、H.264 |
Control signal interface | RS-232, with ring pass RS232 output, can support RS-485 |
control protocol | VISCA/Pelco-D/Pelco-P |
network interface | 100m network port; 5gwifi (optional) |
Network protocol | RTSP、RTMP、ONVIF、GB/T28181 |
Rotation angle | Horizontal: - 110 °～ + 110 °, vertical: - 30 °～ + 30 ° |
Control speed | Horizontal: 0.1 ~ 100 ° / s, vertical: 0.1 ~ 70 ° / S |
Preset bit speed | Horizontal: 100 ° / s, vertical: 70 ° / S |
Number of preset bits | 255 preset positions can be set (10 for remote control) |
weight | About 1.7kg |
Overall dimension | 220×144×159mm |
model | 4k20x HD camera series |
image sensor | 1 / 2.5 "high quality CMOS sensor |
Output valid pixels | 8.5 megapixel 16:9 |
video signal | 3840×2160，1080P；1080I；720P |
Lens optical zoom | 20x optical zoom f = 3.85 ~ 43.6mm |
visual angle | 7.56 ° (narrow angle) ~ 80.4 ° (wide angle) |
Aperture coefficient | f＝3.85～43.6mm |
Digital zoom | 10x |
Video interface | HDM I、USB3. 0、USB2. 0、LAN |
Video compression format | H.265、H.264 |
Control signal interface | RS-232, with ring pass RS232 output, can support RS-485 |
control protocol | VISCA/Pelco-D/Pelco-P |
network interface | 100m network port; 5gwifi (optional) |
Network protocol | RTSP、RTMP、ONVIF、GB/T28181 |
Rotation angle | Horizontal: - 110 °～ + 110 °, vertical: - 30 °～ + 30 ° |
Control speed | Horizontal: 0.1 ~ 100 ° / s, vertical: 0.1 ~ 70 ° / S |
Preset bit speed | Horizontal: 100 ° / s, vertical: 70 ° / S |
Number of preset bits | 255 preset positions can be set (10 for remote control) |
weight | About 1.7kg |
Overall dimension | 220×144×159mm |
