HY-7100/21TA1
HUAIN

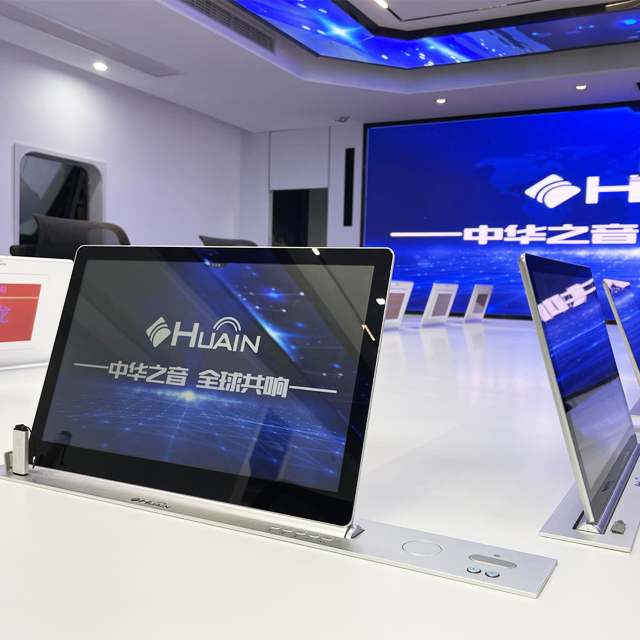

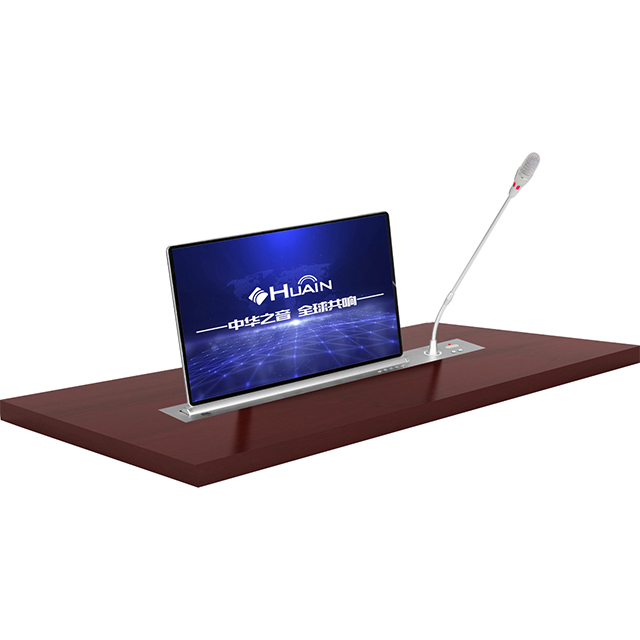

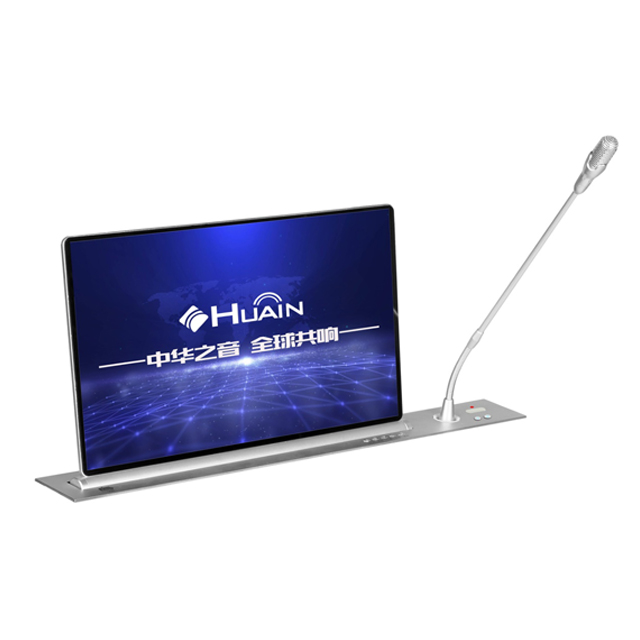

Touch Control LCD Lifter Basic Functions and Features
• Dual slide rail control lifting structure to control the lifting of display screen and microphone
• 1920 × 1080 HD display (support customized 4K resolution)
• Ultra-thin touch HD screen and elevator
• The high-definition touch screen adopts automatic power supply and power off mode. The screen will automatically power on after rising and automatically power off after falling
• High-quality all-aluminum structure and CNC precision processing, the thinnest thickness of the screen is less than 7mm
• The overall weight is 1/3 of the conventional weight, the panel thickness is only 3mm, and the width is only 70mm
• The adjustable range is 120 °, and the panel has independent control keys for rising, pausing and falling
• Support panel manual control, handle RS-232 control, software control, remote control, central control, group control and other control modes
• Support HDMI and VGA signal input
• Automatic identification when there is only one signal input, manual switching when two signals are input at the same time, and automatic power-saving mode when there is no signal
• Built-in loop-through output power interface
• Five conference modes (depending on the host)
• With high-definition camera, speakers can be automatically tracked and pictures can be automatically switched
• Panel size: 555 × seventy × 3mm
• Chassis size: 540 × sixty × 647mm
• Material: all-aluminum alloy box
• Process: CNC engraving, anodizing
Model | 15.6 inch | 17.3inch | 18.5" | 21.5" |
System capacity | Single channel 30 sets | |||
Frequency response | 30Hz~20KHz | |||
Microphone length | 380mm | |||
Signal to noise ratio | >90dB | |||
dynamic range | 96dB | |||
Numbering function | Customizable ID number | |||
Camera tracking | yes | |||
Equivalent noise | 20dBA ( SPL) | |||
Maximum sound pressure level | 125dB ( THD<3%) | |||
Number of chairpersons | 8 sets | |||
Display proportion | 16:09 | |||
Display resolution | 1,920 X 1,080 | |||
Brightness | 300cd/㎡ | |||
Display thickness | <7mm | |||
Backlight type | WLED, 15K hours, including LED driver | |||
Display Perspective | IPS Perspective | |||
Touch screen type | 10 point capacitive touched screen | |||
Video interface | Dual HDM1, VGA interface | |||
Lifting control | Manual control, remote control, software, grouping, central control RS-232/485 control | |||
Control interface | Dual RJ45, switch, data transmission interface | |||
Panel size | 555×70×3mm | 601×70 | 630×70 | 700×77×3mm |
×3mm | ×3mm | |||
Case size | 540×60×647mm | 585×60×647mm | 615×60×647mm | 683×66×717mm |
